Ultimate Guide to EV Charging Cables: 3-Minute Breakdown of AC/DC Differences & Selection Strategies
Ultimate Guide to EV Charging Cables: 3-Minute Breakdown of AC/DC Differences & Selection Strategies
(Data Source: MIIT 2023 – China’s EV ownership exceeds 20 million, charging demand surges 57%)
1. Two Core Types of Charging Cables
1. AC Charging Cables – Ideal for Home Use
✅ Working Principle: Delivers 220V/380V AC power to the vehicle’s onboard charger (OBC).
✅ Key Specifications:
-
Power Output: 7kW (single-phase) / 22kW (three-phase).
-
Charging Speed: 6–8 hours for a 500km range.
✅ Main Connectors:
▸ GB/T (China Standard): Mandatory for all EVs in China.
▸ Type 2 (Europe): Compatible with Audi, BMW, and other imported models.
✅ Use Cases: -

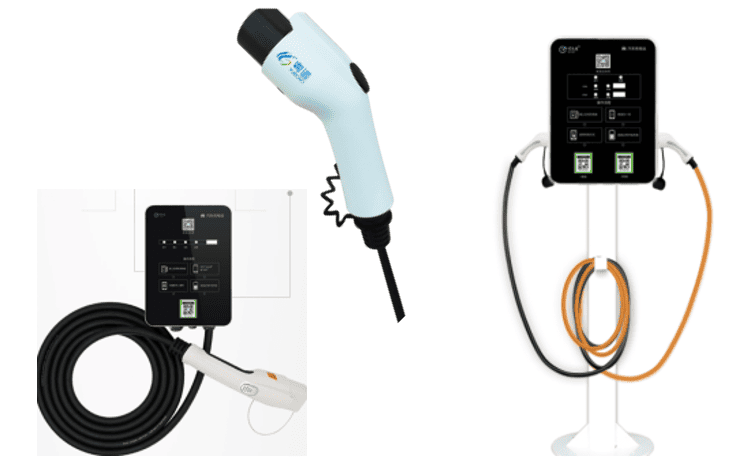

Home wall/stand-mounted chargers.
-
Slow public chargers (malls/offices).
2. DC Charging Cables – The Fast-Charging Champion
⚡ Working Principle: Bypasses the OBC to deliver 200–1000V DC directly to the battery.
⚡ Performance Benchmarks:
-
Power Output: 50–350kW (Tesla V3 Supercharger: 250kW).
-
Charging Speed: 30 minutes to 80% SOC (100kWh battery).
⚡ Connector Standards:
▸ CHAdeMO: Japanese standard (up to 400kW).
▸ CCS Combo: Dominant in EU/US markets (AC/DC compatible).
▸ Tesla Proprietary: Exclusive to Supercharger networks.
✅ Primary Use Cases: -
Highway ultra-fast charging stations.
-
Urban supercharging hubs.
2. AC vs DC: 5 Critical Differences
| Parameter | AC Charging Cables | DC Charging Cables |
|---|---|---|
| Charging Speed | Slow (7–22kW) | Fast (50–350kW+) |
| Cost | Low (¥2,000–8,000) | High (¥200,000+/station) |
| Cable Design | Lightweight (3-core + control line) | Heavy-duty (liquid-cooled) |
| Safety Standards | GB/T 20234.2-2015 | GB/T 20234.3-2015 |
| Typical Use | Overnight home/office charging | Emergency top-ups during long trips |
3. Golden Rules for Cable Selection
1. Home Users:
➤ Recommended: 7kW AC charger (off-peak rates as low as ¥0.3/kWh).
➤ Cable: GB/T standard, 5m length (99% vehicle compatibility).
2. Fleet Operators:
➤ Essential: 120kW DC fast chargers (1-hour full charge).
➤ Configuration: CCS Combo dual-gun system (BYD/NIO compatible).
3. Critical Warnings:
▸ Never use AC cables with DC stations (risk of overload/fuse failure).
▸ Tesla owners require adapters for third-party cables (compatibility risks).
4. Industry Trends to Watch
-
2025 Tech: Huawei’s liquid-cooled ultra-fast cables (600A, 200km/5min).
-
Certifications: Prioritize TÜV/UL-certified cables (rated for -40°C to 125°C).
