Cracked cables from constant bending?
Our 15M-cycle lifespan exceeds industry standards for servo motor applications.
Technical proof:

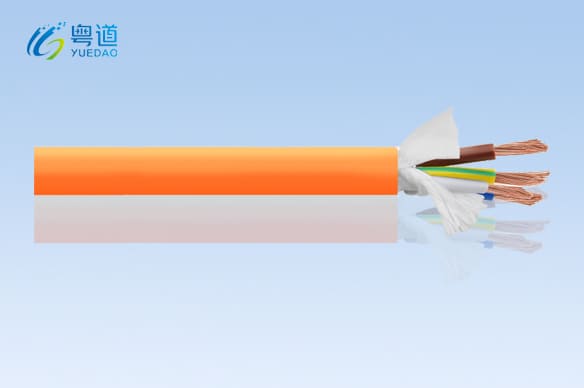

Precision-engineered with TPE-insulated cores and elastic PVC jacket to maintain flexibility at 40m/s² acceleration.
Industrial Applications
- Servo Motor Systems: CNC machines, robotic welding arms
- Automated Production Lines: Packaging machinery, assembly robots
- Outdoor Installations: AGVs, solar tracker systems (UV-protected)
Key Benefits
- Ultra-High Durability: 15 million drag chain movements certified
- All-Environment Ready: UV-resistant jacket for outdoor installations (-15°C to +70°C)
- Precision Signal Integrity: Ultra-fine oxygen-free copper conductors
- Safety Compliance: CE, ROHS, CCC, ISO certified
More Details
Technical Data
| Parameter | Specification |
|---|---|
| Rated Voltage | 300/500V, 0.6/1kV |
| Min. Bend Radius | 7× cable diameter |
| Max Speed | 5 m/s |
| Max Acceleration | 40 m/s² |
| Temperature Range | -15°C to +70°C (custom high-temp versions available) |
| Conductor | Multi-stranded ultra-fine oxygen-free copper |
| Insulation | Eco-friendly PVC |
| Jacket | Elastic PVC blend |
Certifications & Support
- Global Standards: CE, ROHS, CCC, ISO 9001
- Custom Options: Flame-retardant, high-temperature (-40°C to +120°C), custom colors
- Packaging: Standard 100m/200m reels, cut-to-length available
FAQ
Q: How does UV protection benefit outdoor installations?
A: Our special PVC jacket prevents degradation from sunlight exposure, ideal for solar equipment or outdoor AGVs.
Q: Can this cable handle 1kV power transmission?
A: Yes! The 0.6/1kV rating supports both signal and power transmission in servo systems.
